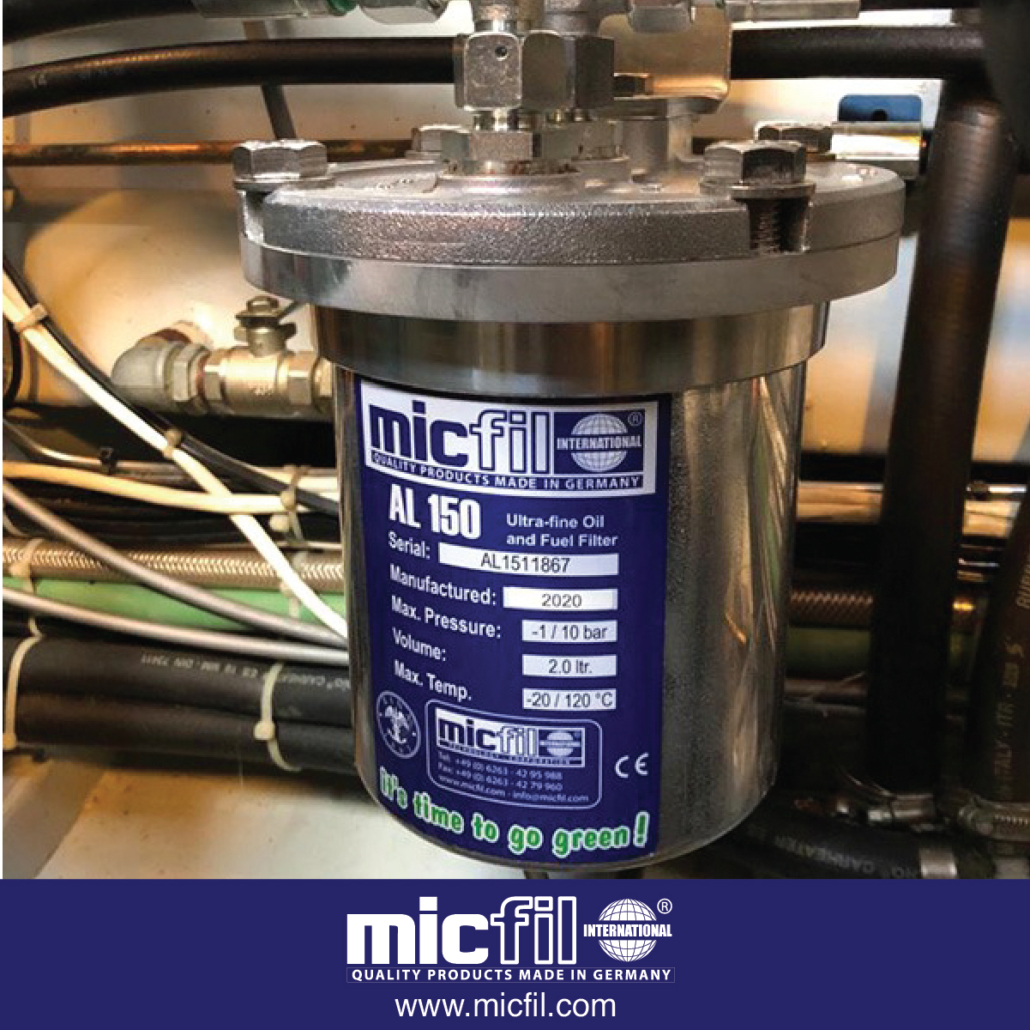

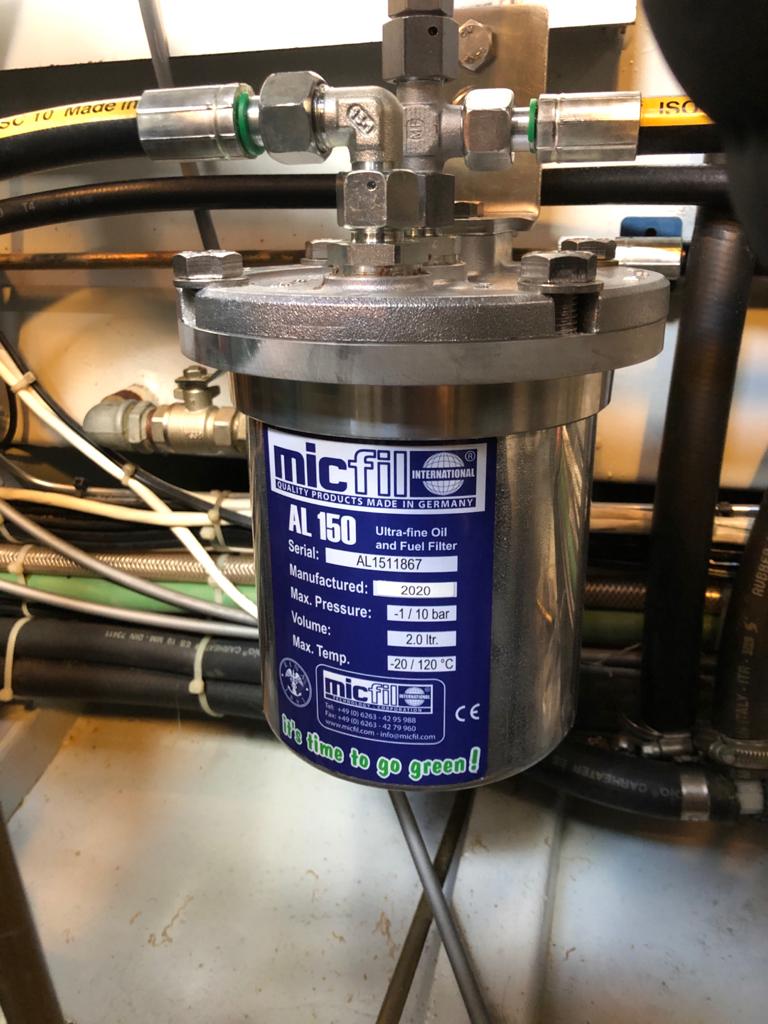

AL 150


AL/ST 150

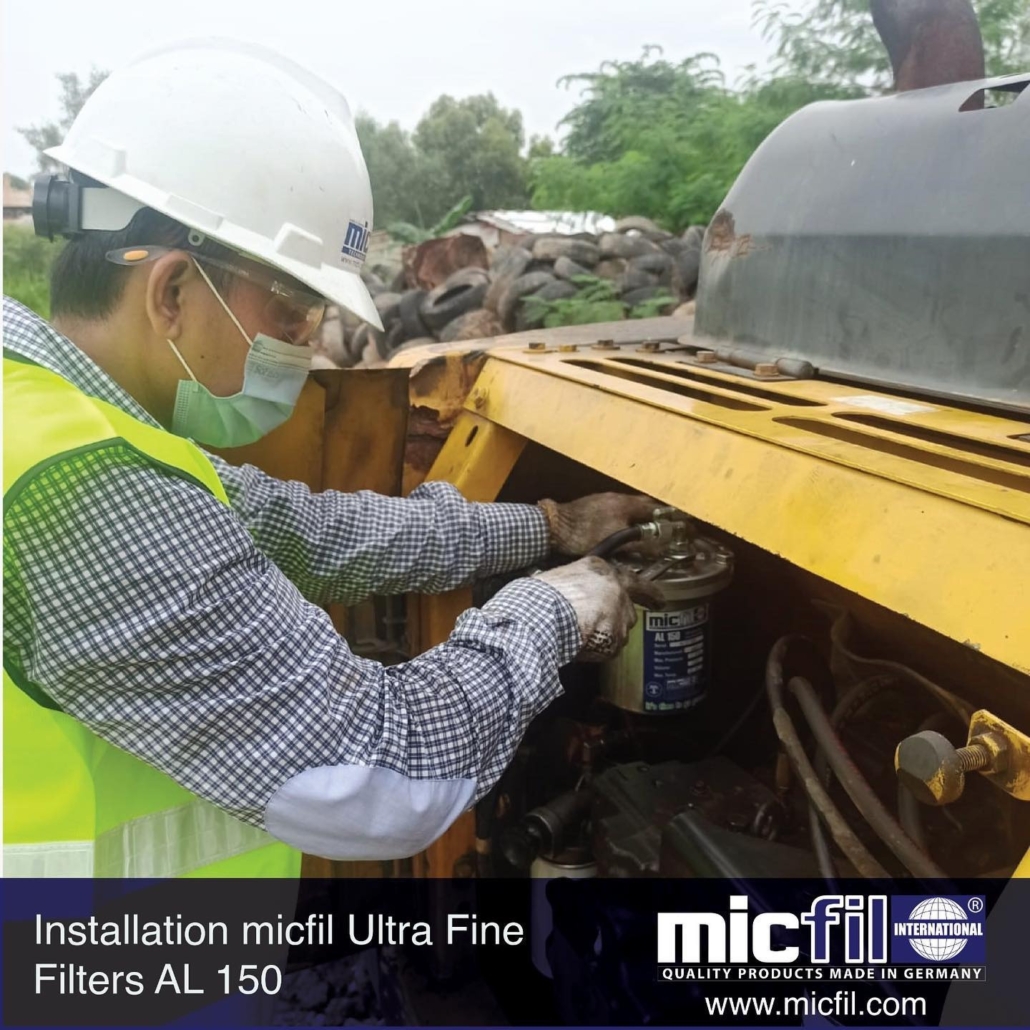

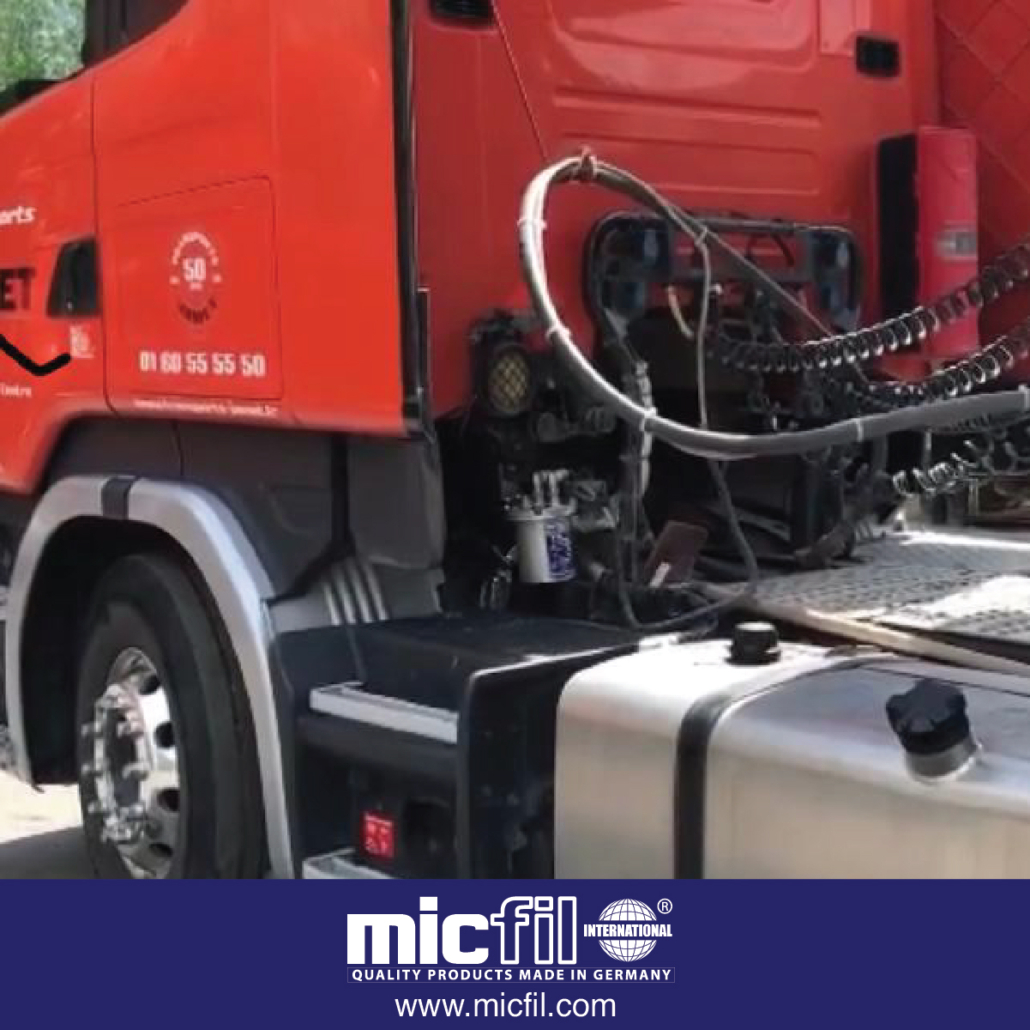

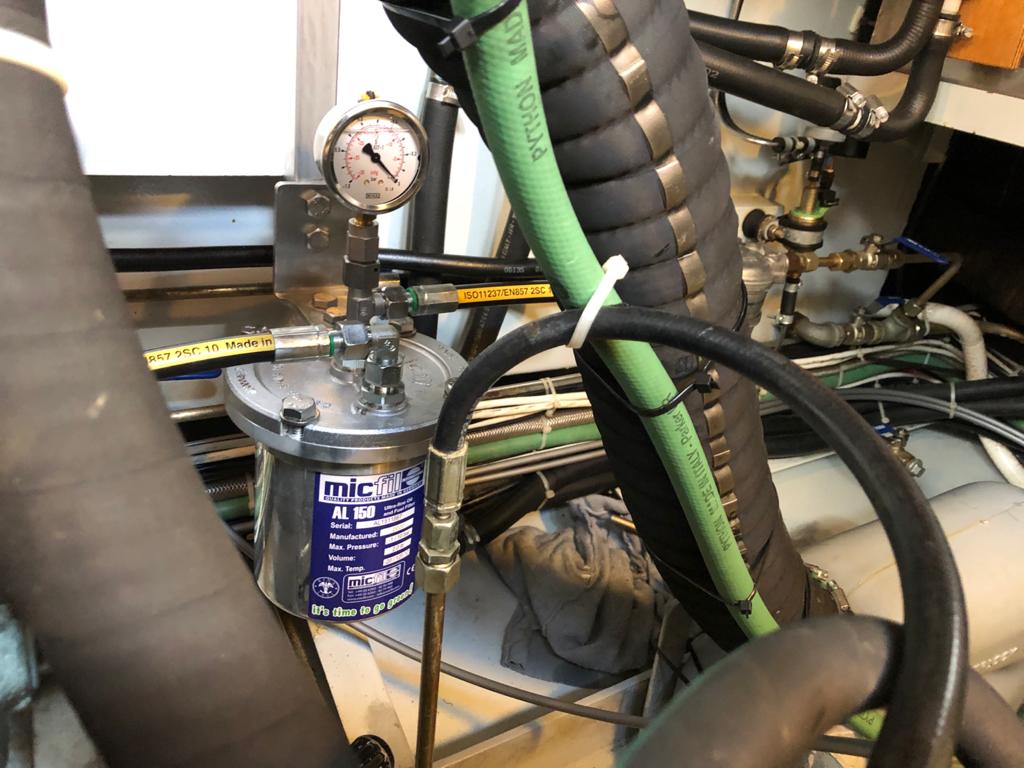

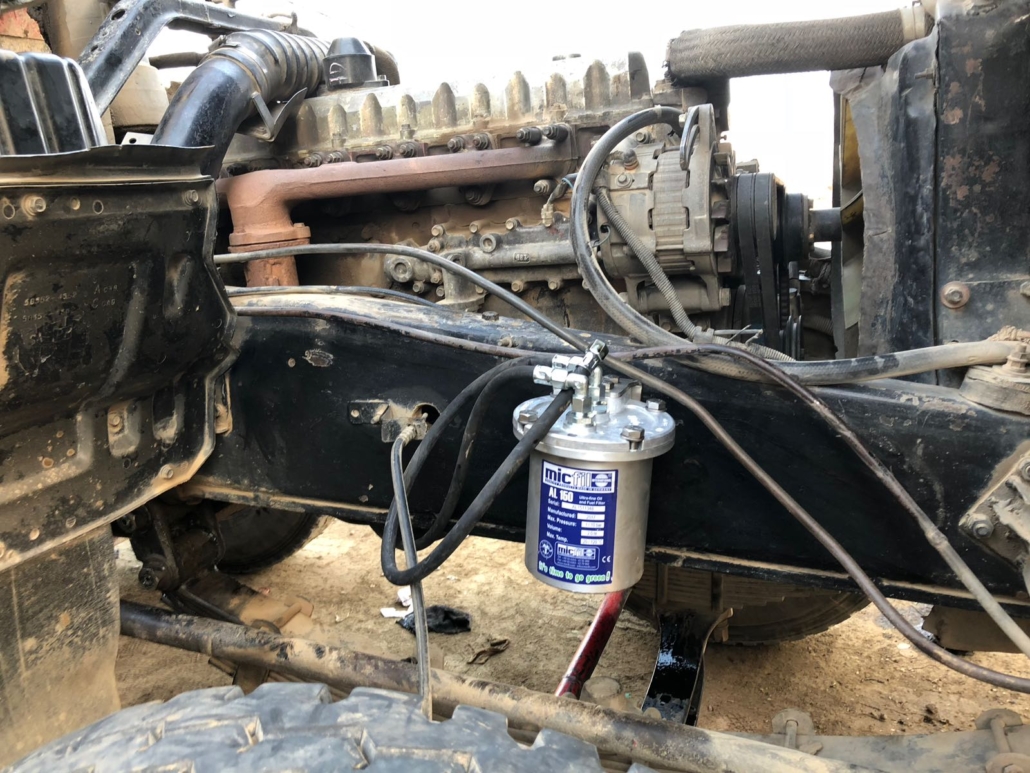

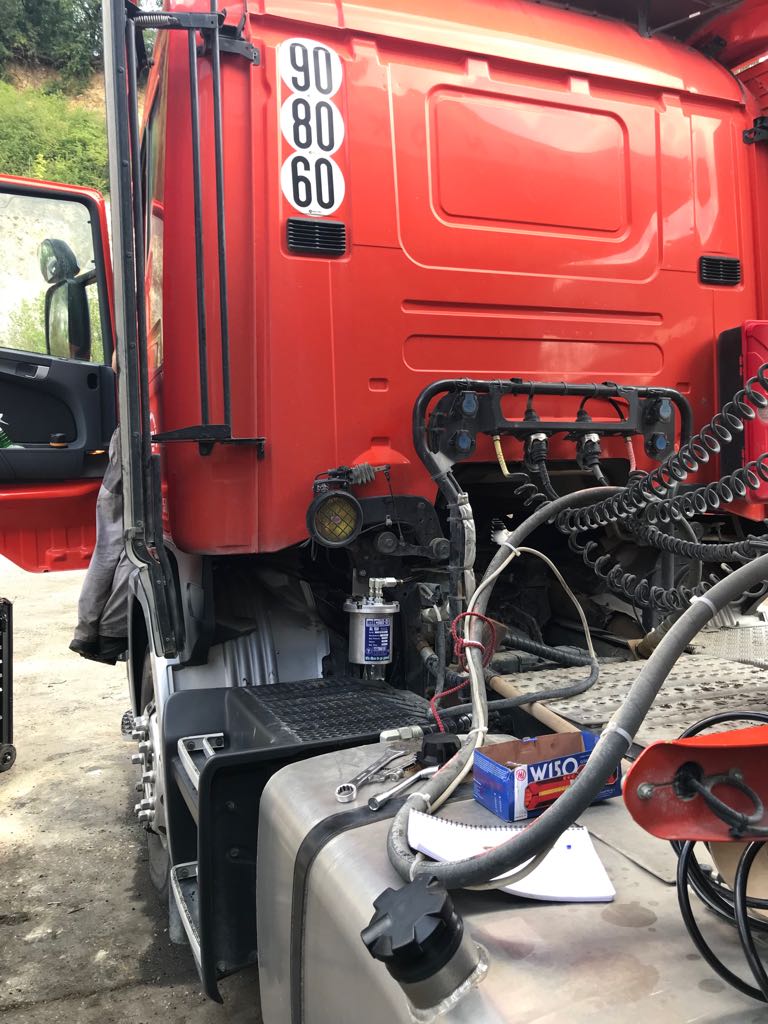

ULTRA FINE FILTER – IDEAL FOR ALL TYPES OF TRUCKS, CONSTRUCTION MACHINERY, GENERATORS, AND BOATS.

The micfil AL/ST 150 0.5 µm is the ideal filter for all types of trucks, busses, construction machinery, generators, and boats.

With a diesel/petrol flow rate of up to 300l/h and an engine oil volume of max. 50l in bypass installations, it is also suitable for use under extreme conditions.

The micfil Al(Aluminium)/ST(Stainless Steel) 150 oil and fuel filter prevents abrasion in the machine for bearings, sleeves, and all moving oil-lubricated parts in the engine as well as in the diesel area for injection pumps and injectors. The use of our micfil ultra-fine filter prevents deposits in the combustion chamber, stops abrasion(in piston rings, injectors), and thus achieves a much improved and cleaner combustion.

The special features of the filter include a low price and easy maintenance. The installation leads to a much longer life expectancy of your engines and machines.

The filter can be used as a bypass filter for engine oil, in hydraulic, turbine, gear oil as well as for biofuels and bio-oil (see datasheet).

The micfil AL/ST 150 is suitable for both commercial and private use.

FEATURES

  • filtration up to 0.5 µm
  • water absorbing
  • high flow
  • long service life
  • space-saving
  • easy insert change
  • for pressure and vacuum
  • for up to 10 bar pressure
  • eliminated cs. 98 % of all bacteria

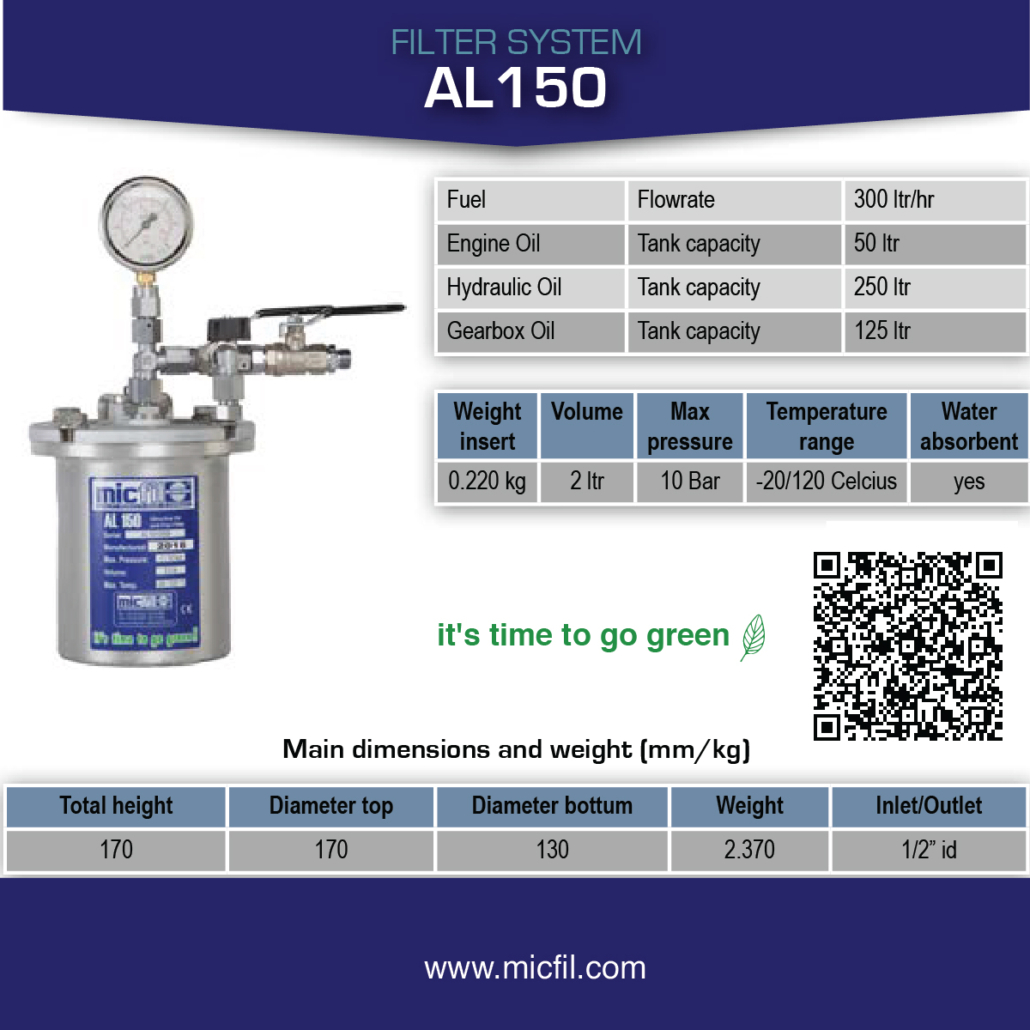

SPECIFICATIONS

Housing material
-RINA certified
-Bureau Veritas certified

Aluminium Almg 4.5 (AL)
V4A stainless steel 316 (ST)
Height (mm)170
Diameter (mm)
-at lid
-at bowl

170
130
Weight (g)
-AL
-ST
-Filter element (FE 150)

2.370
4.605
220
Volume (l)2,0
Inlet/ Outlet connections (”)1/2
Max. pressure (bar)10
Temperature (°C)-20 … 120
Flow rate:
-Diesel (l/h)

300
Diff. pressure in fuel flow diesel (bar)0,00 – 0,01
Tank volume (l):
-Engine oil
-Hydraulic oil (ISO VG 46)
-Gearbox oil

≤ 50
≤ 250
≤ 125
Element change interval (h)
-Fuel
-Engine oil
-Hydraulic oil
-Gearbox oil
-Bio diesel

400 (≈ 30.000 km)
max. 400 (≈ 30.000 km)
400 – 800
400
250 – 300
Water absorbendYes
Particle size (µm, ISO 4406)≤ 0,5
