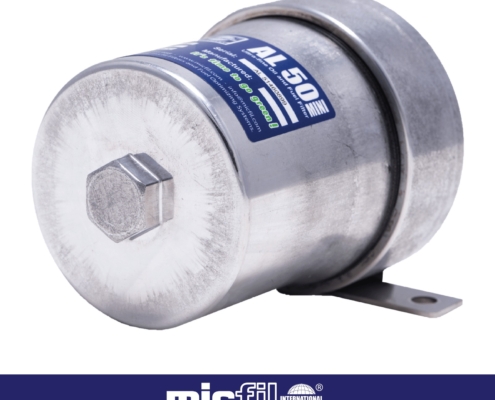

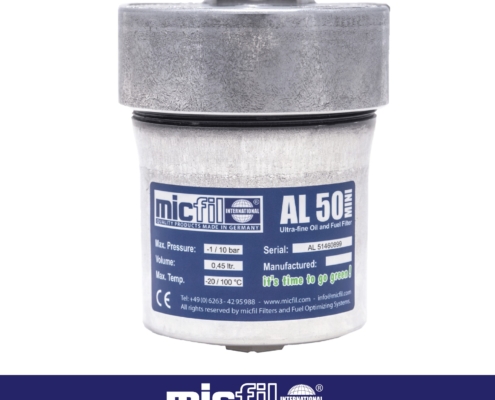

AL50 MINI

ULTRA FINE FILTER – ESPECIALLY FOR SMALL ENGINES

The micfil AL 50 MINI 0.5 µm filter has been specially designed for small engines, small generators, small trucks, taxi fleets, outboard engines, etc.

The low price and easy maintenance, together with the savings achieved, make it an attractive new addition to our product range.

The micfil AL50 MINI has a maximum flow rate of 50l/h for diesel. 70l/h for petrol and 10l volume for engine oil.

In the engine oil range, it is used for bypass filtration.

FEATURES

• filtration up to 0.5 µm
• water absorbing
• high flow
• long service life
• space-saving
• easy insert change
• for pressure and vacuum
• for up to 10 bar pressure
• eliminated ca. 98 % of all bacteria

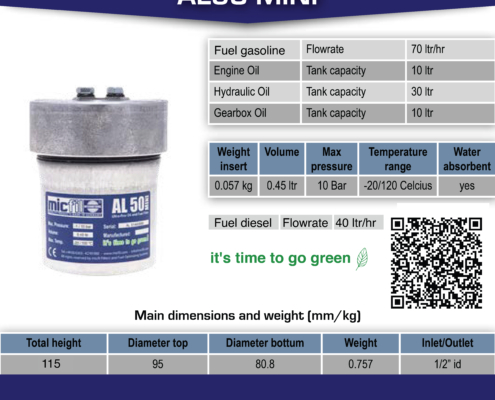

SPECIFICATIONS

Housing material -RINA certified -Bureau Veritas certified	Aluminium Almg 4.5 (AL) V4A stainless steel 306 (ST)
Height (mm)	115
Diameter (mm) -at lid -at bowl	95 80,8
Weight (g) -Housing: -Filter element (FE50)	757 57
Volume (l)	0,45
Inlet/ Outlet connections (”)	1/4″
Max. pressure (bar)	10
Temperature (°C)	-20 … 120
Flow rate: -Diesel (l/h) -Benzin (l/h)	40 70
Diff. pressure in fuel flow Diesel (bar)	0,00 – 0,01
Tank capacity (l): -Engine oil -Hydraulic oil (ISO VG 46) -Gearbox oil	≤ 10 ≤ 30 ≤ 10
Element change interval (h) -fuel -engine oil -Hydraulic oil -Gearbox oil -Bio diesel	100 – 150 (≈ 20.000 km) 100 – 150 (≈ 20.000 km) 150 150 80
Water absorbend	Yes
Particle size (µm, ISO 4406)	≤ 0,5
