AL 300
AL/ST 300
AL/ST 300
ULTRA FINE FILTER – WITH A DIESEL/PETROL FLOW RATE OF UP TO 600 L/H

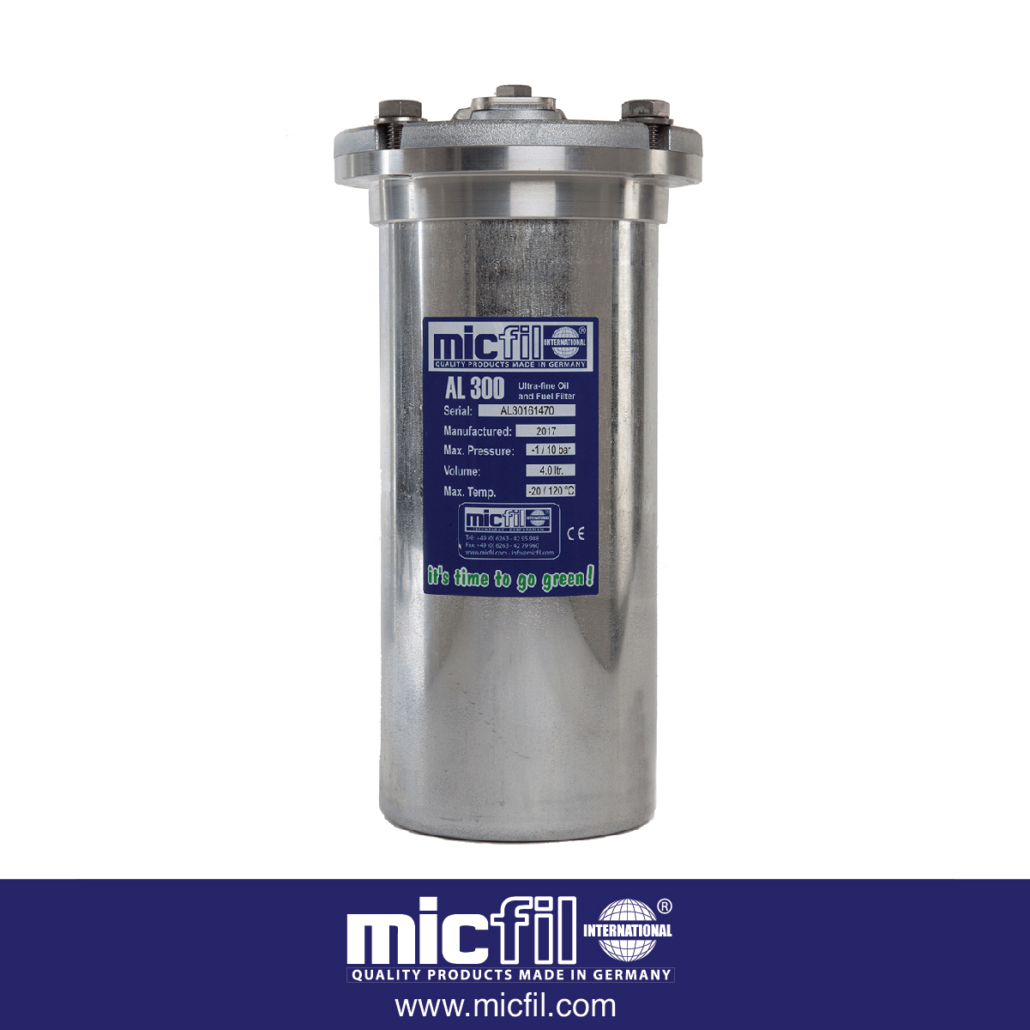

The micfil AL/ST 300 0.5 µm is the ideal filter for all types of trucks, construction machinery, generators, and boats.
With a diesel/petrol flow rate of up to 600l/h and an engine oil volume of max. 100l in bypass installations, it is also suitable for use under extreme conditions.
The micfil Al(Aluminium)/ST(Stainless Steel) 300 oil and fuel filter prevents abrasion in the machine for bearings, sleeves, and all moving oil-lubricated parts in the engine as well as in the diesel area for injection pumps and injectors. The use of our micfil ultra-fine filter prevents deposits in the combustion chamber, stops abrasion(in piston rings, injectors), and thus achieves a much improved and cleaner combustion.
The special features of the filter include a low price and easy maintenance. The installation leads to a much longer life expectancy of your engines and machines.
The filter can be used as a bypass filter for engine oil, in hydraulic, turbine, gear oil as well as for biofuels and bio-oil (see datasheet).
The micfil AL/ST 300 is suitable for both commercial and private use.
FEATURES
- fitration up to 0.5 µm
- water absorbing
- high flow
- long service life
- space-saving
- easy insert change
- for pressure and vacuum
- for up to 10 bar pressure
- eliminated cs. 98 % of all bacteria

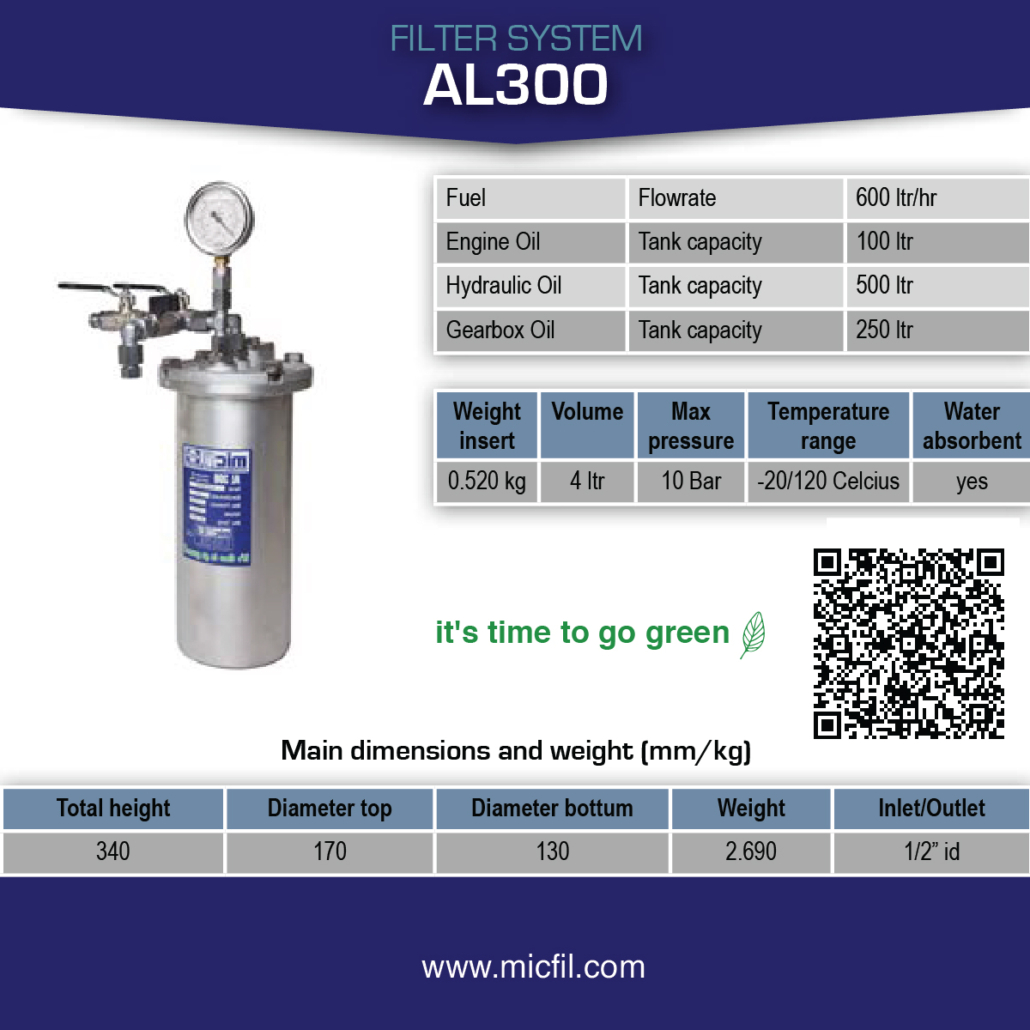

SPECIFICATIONS
| Housing material -RINA certified -Bureau Veritas certified | Aluminium Almg 4.5 (AL) V4A stainless steel 306 (ST) |
| Height (mm) | 340 |
| Diameter (mm) -at lid -at bowl | 170 130 |
| Weight (g) -AL -ST -Filter element (FE 150) | 2.690 6.200 520 |
| Volumen (l) | 4,0 |
| Inlet/ Outlet Connections (”) | 1/2 |
| Max. pressure (bar) | 10 |
| Temperature (°C) | -20 bis 120 |
| Flow rate -Diesel (l/h) | 600 |
| Diff. pressure in fuel flow diesel (bar) | 0,00 bis 0,01 |
| Tank capacity (l): -Engine oil -Hydraulic oil (ISO VG 46) -Gearbox oil | ≤ 100 ≤ 500 ≤ 250 |
| Element change interval (h) -Diesel -Engine oil -Hydraulic oil -Gearbox oil -Bio diesel | 800 – 1.000 (≈ 60.000 km) 600 – max. 800 (≈ 60.000 km) 800 – 1.500 800 300 – 800 |
| Water absorbend | Ja |
| Particle size (µm, ISO 4406) | ≤ 0,5 |
it's time to go green!
